- Heavy Duty Rexnord steel housing drive shaft bearings.
- Duplex motor and drive shaft sprocket/chain options.
- Dull nickel electroplated bearing blocks and components.

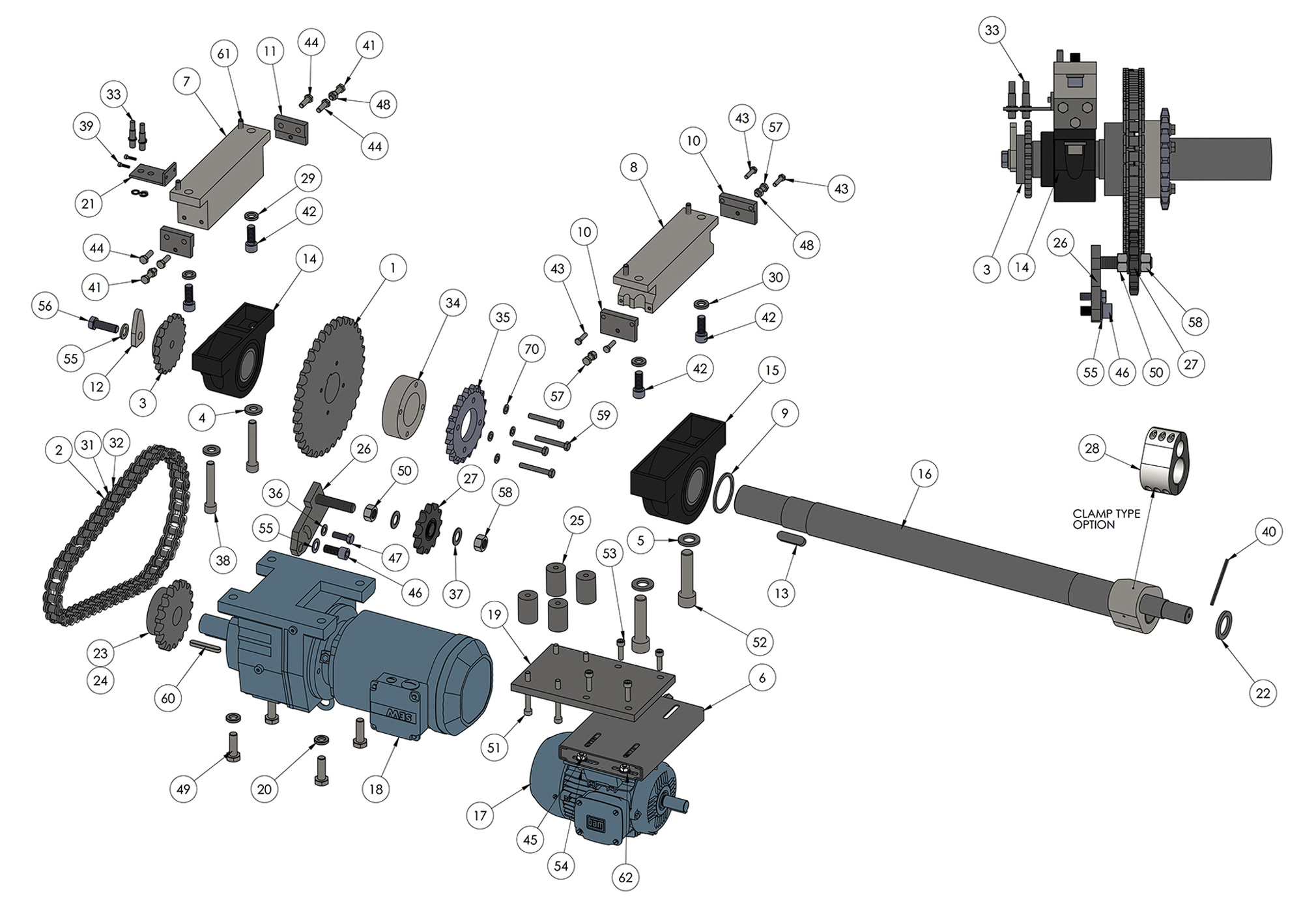

Summary | Image | ID | Add to Quote |
---|---|---|---|
62. M10 Washer | WASHER | ||
61. 10 x 40 Dowel | DOWEL | ||
60. 12 x 8 x 70 | KEY | ||
59. M10 x 70 Hex Head 10.9 | BOLT | ||
58. M20 Nyloc Nut | NUT | ||
57. M10 x 30 Hex Head 8.8 plated | BOLT | ||
56. M16 X 50 Hex Head | BOLT | ||
55. M16 Plain Washer | WASHER | ||
54. M10 x 30 Hex Head | BOLT | ||
53. M10 X 35 Hex Head | BOLT | ||
52. M24 x 100 Socket Cap | BOLT | ||
51. M10 x 90 Socket Cap | BOLT | ||
50. M20 Plain Nut | NUT | ||
49. M16 x 50 Hex Head 10.9 | BOLT | ||
48. M10 Plain Nut | NUT | ||
47. M12 x 35 Hex Head 8.8 | BOLT | ||
46. M16 x 35 Hex Head 8.8 | BOLT | ||
45. M10 Nyloc Nut | NUT | ||
44. M10 x 30 Hex Head 10.9 plated | BOLT | ||
43. M8 x 30 Hex head | BOLT | ||
42. M16 x 40 Socket Cap | BOLT | ||
41. M10 x 40 Hex Head | BOLT | ||
40. 6 x 90 Roll Pin | PIN | ||
39. M5 x 20 Socket Cap | BOLT | ||
38. M16 x 90 Socket Cap | BOLT | ||
37. M20 Plain Washer | WASHER | ||
36. M12 Plain Washer | WASHER | ||
35. 1″ PITCH SPROCKET 19T | 99811225 | ||
34. SPACER | 99811217 | ||
33. INDUCTIVE SENSOR | 99810337 | ||
32. 1″ PITCH HALF LINK | 99810332 | ||
31. 1″ PITCH JOINING LINK | 99810331 | ||
30. RH BEARING BLOCK WASHER | 99811136 | ||
29. LH BEARING BLOCK WASHER | 99811135 | ||
28. ECCENTRIC BOSS SPLIT TYPE | 99811313 | ||
27. TENSIONER SPROCKET inc BEARING | 99810327 | ||
26. TENSIONER ARM | 99810317 | ||
25. STAND OFF PILLARS | 99810316 | ||
24. 1″ P SPKT 17T T/ LOCK VERSION | 99810329T | ||
23. 1″ PITCH SPROCKET 17T | 99810329 | ||
22. SPACER | 99811312 | ||
21. SENSOR MOUNT | 99810320 | ||
20. MOTOR WASHER | 99811138 | ||
19. MOTOR MOUNTING PLATE | 99810315 | ||
18. MOTOR 4kw | 99810333 | ||
17. MOTOR 1.5Kw | 99810334 | ||
16. MAIN DRIVE SHAFT COMPLETE | 99811247 | ||
15. BEARING 70mm | 99816670 | ||
14. BEARING 60mm | 99816671 | ||
13. KEY | 99810309LK | ||
12. DIVIDER CAM | 99810314 | ||
11. BEARING THRUST PLATE LH | 99810318-HD | ||
10. BEARING THRUST PLATE RH | 99810319-HD | ||
09. SPACER | 99810322C | ||
08. BEARING BLOCK RH | 99810313 | ||
07. BEARING BLOCK LH | 99810312 | ||
06. MOTOR ADJUSTER PLATE | 99810336 | ||
05. 70mm PILLAR BLOCK WASHER | 99811137 | ||
04. 60mm PILLER BLOCK WASHER | 99811134 | ||
03. 3/4″ TIMING SPROCKET 20T | 99810321/335 | ||
02. 1″ PITCH CHAIN x 45 PITCHES | 99810330 | ||
01. 1″ PITCH SPROCKET 35T | 99810328 |
